- Top frame: Galvanized steel beam, 180mm width 5633-3 2688-2, 210*150*210 high-end galvanized corner pieces -4, purlin 80*40C steel, insulation cotton 18 square, PE film, color steel leather plate, sealing the whole butyl tape waterproof, 831 ceiling tile 18 square, 3 20*20 square pipe, with slide rail.
- Lower frame: Galvanized steel beam, 160mm wide roller beam 5633-2 2688-2, 210*150*160 high-end galvanized corner parts and connectors -4, 50*100 square pipe
- Stand column: Galvanized strip steel 210*150*2526-4 pieces
- Floor: Calcium silicate board *5 pieces (asbestos-free)
- Door: High-grade steel door (840*2035, flat sub-frame, European standard fire lock, 50/75 universal)
Product Overview:
Specifications:
| Packing list (pulley type) | ||

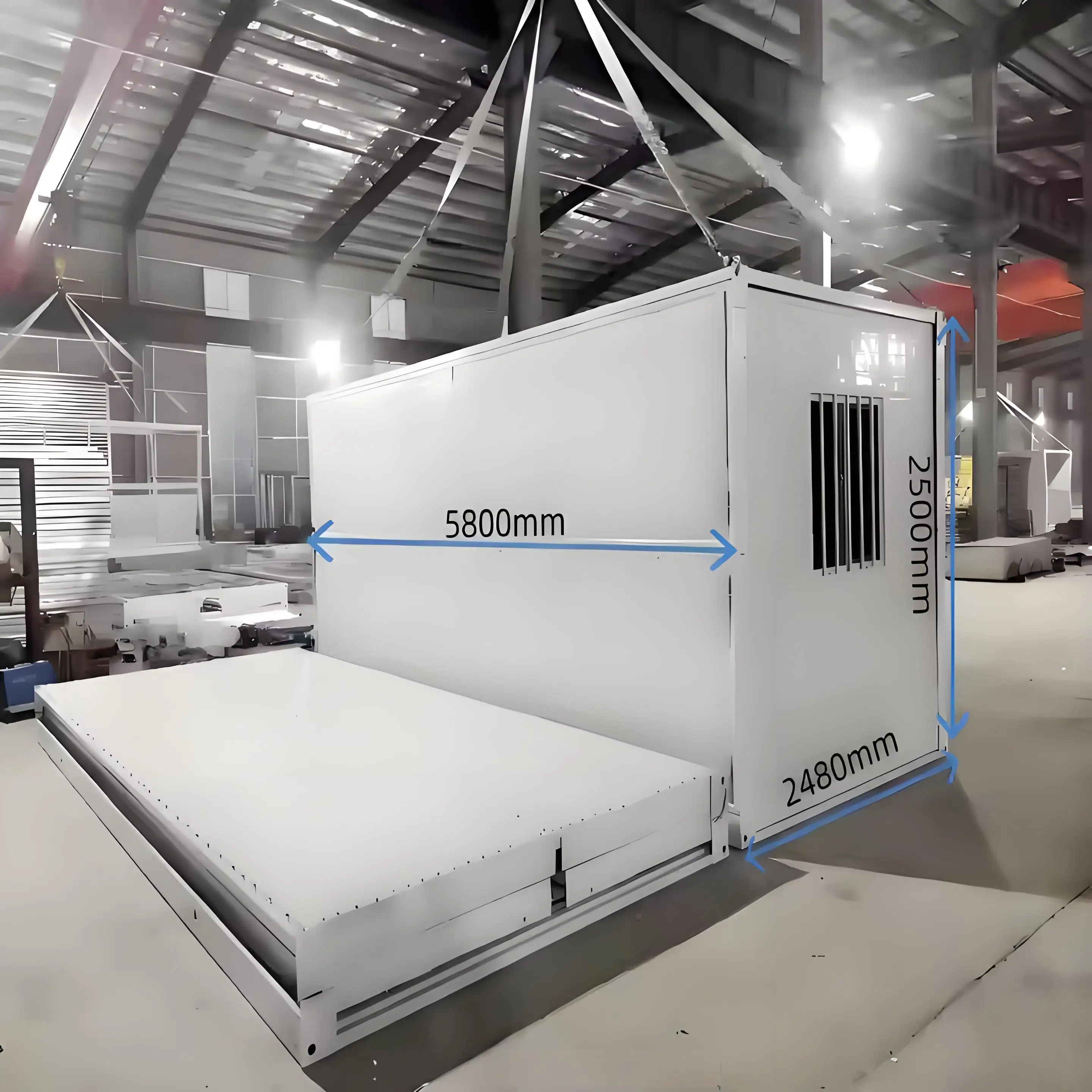

| 2.3*2500*5800*2500mm | ||
| standard | Product Name | constituent part |
| 1 | Top frame | Galvanized steel beam, 180mm width 5633-3 2688-2, 210*150*210 high-end galvanized corner pieces -4, purlin 80*40C steel, insulation cotton 18 square, PE film, color steel leather plate, sealing the whole butyl tape waterproof, 831 ceiling tile 18 square, 3 20*20 square pipe, with slide rail. |
| 2 | lower frame | Galvanized steel beam, 160mm wide roller beam 5633-2 2688-2, 210*150*160 high-end galvanized corner parts and connectors -4, 50*100 square pipe |
| 3 | stand column | Galvanized strip steel 210*150*2526-4 pieces |
| 4 | floor | Calcium silicate board *5 pieces (asbestos-free) |
| 5 | door | High-grade steel door (840*2035, flat sub-frame, European standard fire lock, 50/75 universal) |
| 6 | window | High-grade plastic steel window (insulating glass 3.0mm thick, with anti-theft net, screen window, 1130*1100mm, 2) 50/75 optional |
| 7 | wallboard | 1150, double-sided 0.35 80kg/m³ rockwool, 50mm single-sided laminated composite board, four bread edges, several rivets |
| 8 | downspout | ¢50mm,PVC downspout, 4 pieces |
| 9 | suspended ceiling | Ceiling, installation of wall panels, square pipe materials and auxiliary materials |
| 10 | Column Angle | Four negative Angle lines of the column contain negative Angle line fixings |
| 11 | ingredients | 4 pieces of structural glue, 32 4*20 round head drill tail wires, 25 12*75 hexagonal drill tail wires, 1 set of 12*30 galvanized bolts, 50 12*25 hexagonal drill tail wires, 32 4*25 self-tapping nails, 1 set of connecting bolts. |
| 12 | ground | 1.6 Floor leather belt welds |
| 13 | Installation electrical distribution | Brand electrical distribution, household 6㎡, 4m², 2.5m², 1.5㎡ copper wire (two cores of lamp wire) American standard socket Single open Two long strips of light An advanced eight-loop distribution box A 2P32A leakage protector Three 25A circuit breakers An industrial socket plus an industrial socket cable box is installed on the top frame |
| 14 | Packing cabinet | Sandwich packing, wheel changing, container loading |
